Product Details
Tempat asal: Jiangsu, Cina
Nama merek: HENGTONG
Nomor model: P41-015
Document: Product Brochure PDF
Payment & Shipping Terms
Kuantitas min Order: 500 buah
Harga: $0.322 - $1.30/pieces
Kemasan rincian: kotak karton dan kemudian palet.
Menyediakan kemampuan: 500000 Potongan/potongan per Bulan
Bahan: |
Logam |
Standar atau Tidak Standar: |
Standar |
Penggunaan: |
Pipa penjepit |
Struktur: |
Penjepit Pelana |
Pelabuhan: |
Shanghai |
Bahan: |
Logam |
Standar atau Tidak Standar: |
Standar |
Penggunaan: |
Pipa penjepit |
Struktur: |
Penjepit Pelana |
Pelabuhan: |
Shanghai |

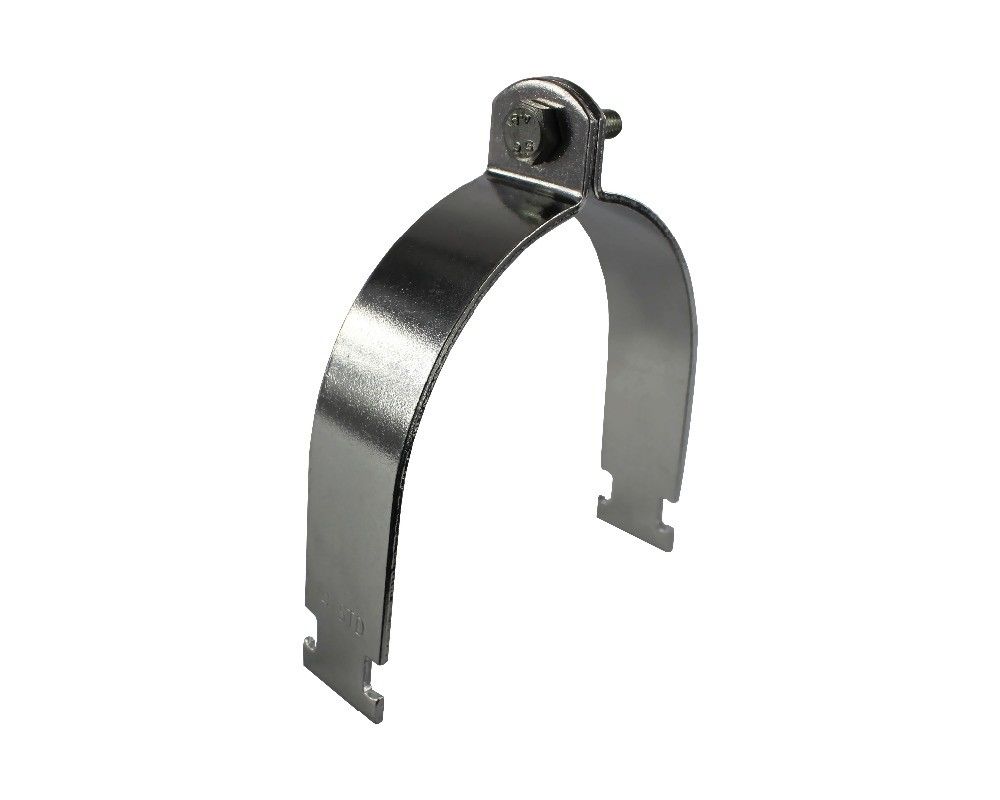

Produsen Clip Pipe Clamps galvanis
| Bagian No. | Ukuran pipa (In) |
Ukuran OD (mm) |
Ketebalan (mm) | beban desain (KN) |
| D41-002 | 1/4 | 6.4 | 1.5 | 1.8 |
| P41-006 | 3/8 | 9.5 | 1.5 | 1.8 |
| P41-008 | 1/2 | 12.7 | 1.5 | 1.8 |
| D41-005 | 5/8 | 15.9 | 1.5 | 1.8 |
| D41-006 | 3/4 | 19.1 | 1.5 | 1.8 |
| P41-015 | 7/8 | 22.2 | 1.5 | 1.8 |
| P41-020 | 1 | 25.4 | 2 | 2.7 |
| T41-025 | 1 1/8 | 28.6 | 2 | 2.7 |
| D41-012 | 1 1/4 | 31.8 | 2 | 2.7 |
| P41-025 | 1 3/8 | 34.9 | 2 | 2.7 |
| T41-032 | 1 1/2 | 38.1 | 2 | 2.7 |
| P41-032 | 1 5/8 | 41.3 | 2 | 2.7 |
| T41-040 | 1 3/4 | 44.5 | 2.5 | 3.6 |
| P41-040 | 1 7/8 | 47.6 | 2.5 | 3.6 |
| D41-020 | 2 | 50.8 | 2.5 | 3.6 |
| T41-050 | 2 1/8 | 54.0 | 2.5 | 3.6 |
| D41-022 | 2 1/4 | 57.2 | 2.5 | 3.6 |
| P41-050 | 2 3/8 | 60.3 | 2.5 | 3.6 |
| D41-024 | 2 1/2 | 63.5 | 2.5 | 3.6 |
| D41-025 | 2 5/8 | 66.7 | 2.5 | 3.6 |
| D41-026 | 2 3/4 | 69.9 | 2.5 | 3.6 |
| P41-065 | 2 7/8 | 73.0 | 2.5 | 3.6 |
| D41-030 | 3 | 76.2 | 2.5 | 3.6 |
| D41-031 | 3 1/8 | 79.4 | 2.5 | 3.6 |
| D41-032 | 3 1/4 | 82.6 | 2.5 | 3.6 |
| D41-033 | 3 3/8 | 85.7 | 2.5 | 3.6 |
| P41-080 | 3 1/2 | 88.9 | 2.5 | 3.6 |
| D41-035 | 3 5/8 | 92.1 | 3 | 4.4 |
| D41-036 | 3 3/4 | 95.3 | 3 | 4.4 |
| D41-037 | 3 7/8 | 98.4 | 3 | 4.4 |
| P41-090 | 4 | 101.6 | 3 | 4.4 |
| D41-041 | 4 1/8 | 104.8 | 3 | 4.4 |
| D41-042 | 4 1/4 | 108.0 | 3 | 4.4 |
| D41-043 | 4 3/8 | 111.1 | 3 | 4.4 |
| P41-100 | 4 1/2 | 114.3 | 3 | 4.4 |
| D41-045 | 4 5/8 | 117.5 | 3 | 4.4 |
| D41-046 | 4 3/4 | 120.7 | 3 | 4.4 |
| D41-047 | 4 7/8 | 123.8 | 3 | 4.4 |
| D41-050 | 5 | 127.0 | 3 | 4.4 |
| D41-051 | 5 1/8 | 130.2 | 3 | 4.4 |
| D41-052 | 5 1/4 | 133.4 | 3 | 4.4 |
| D41-053 | 5 3/8 | 136.5 | 3 | 4.4 |
| P41-125 | 5 1/2 | 139.7 | 3 | 4.4 |
| D41-055 | 5 5/8 | 142.9 | 3.5 | 4.4 |
| D41-056 | 5 3/4 | 146.1 | 3.5 | 4.4 |
| D41-057 | 5 7/8 | 149.2 | 3.5 | 4.4 |
| D41-060 | 6 | 152.4 | 3.5 | 4.4 |
| D41-061 | 6 1/8 | 155.6 | 3.5 | 4.4 |
| D41-062 | 6 1/4 | 158.8 | 3.5 | 4.4 |
| D41-063 | 6 3/8 | 161.9 | 3.5 | 4.4 |
| D41-064 | 6 1/2 | 165.1 | 3.5 | 4.4 |
| P41-150 | 6 5/8 | 168.3 | 3.5 | 4.4 |
| D41-066 | 6 3/4 | 171.5 | 3.5 | 4.4 |
| D41-067 | 6 7/8 | 174.6 | 3.5 | 4.4 |
| D41-070 | 7 | 177.8 | 3.5 | 4.4 |
| D41-071 | 7 1/8 | 181.0 | 3.5 | 4.4 |
| D41-072 | 7 1/4 | 184.2 | 3.5 | 4.4 |
| D41-073 | 7 3/8 | 187.3 | 3.5 | 4.4 |
| D41-074 | 7 1/2 | 190.5 | 3.5 | 4.4 |
| D41-075 | 7 5/8 | 193.7 | 3.5 | 4.4 |
| D41-076 | 7 3/4 | 196.9 | 3.5 | 4.4 |
| D41-077 | 7 7/8 | 200.0 | 3.5 | 4.4 |
| D41-080 | 8 | 203.2 | 3.5 | 4.4 |
| D41-081 | 8 1/8 | 206.4 | 3.5 | 4.4 |
| D41-082 | 8 1/4 | 209.6 | 3.5 | 4.4 |
| D41-083 | 8 3/8 | 212.7 | 3.5 | 4.4 |
| D41-084 | 8 1/2 | 215.9 | 3.5 | 4.4 |
| P41-200 | 8 5/8 | 219.1 | 3.5 | 4.4 |
Bahan dalam stok dapat diproduksi (prosedur 5-20 hari) segera setelah konfirmasi pra-bayaran.Dibutuhkan sekitar 15-40 hari untuk seluruh dunia, Harap perhatikan informasi kontak Anda termasuk nomor telepon Anda untuk mudah menghubungi dari petugas perusahaan pengiriman.
| Di laut | Pelabuhan Shanghai, pelabuhan Ningbo atau lainnya |
| Dengan udara | Pelabuhan Shanghai Pudong |
| Dengan ekspres | DHL, TNT, FedEx, UPS dll |
